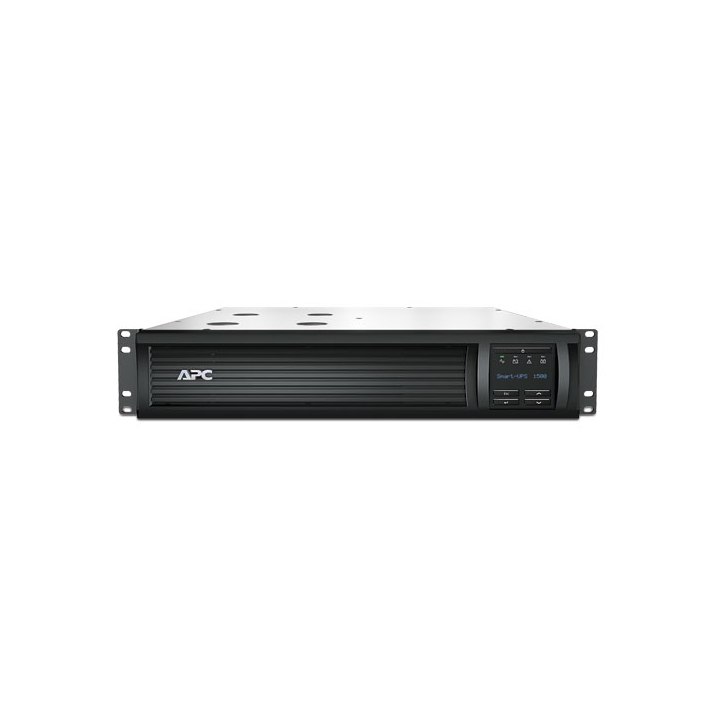

Bộ lưu điện Line Interactive APC Smart SMT1500RMI2U LCD RM 2 (1500VA1000W)-Hàng Chính Hãng
- - Công suất: 1500VA
- - Thời gian lưu tối đa: N/A
- - Cổng giao tiếp: Interface Port(s) RJ-45 Serial , SmartSlot , USB.
12 tháng
Tại sao bạn chọn Tứ Gia
- Giao hàng miễn phí lên tới 150km
- Thanh toán thuận tiện
- Sản phẩm 100% chính hãng
- Bảo hành tại nơi sử dụng
- Giá cạnh tranh nhất thị trường
- Đổi mới 30 ngày đầu nếu có lỗi của nhà sản xuất
Thông số kỹ thuật
Sản phẩm | Bộ lưu điện |
Hãng sản xuất | APC |
Model | Smart 1500VA LCD RM 2U 230V (SMT1500RMI2U) |
Công nghệ | Line Interactive |
Công suất | 1.0 KWatts / 1.5 kVA |
Thời gian lưu tối đa | N/A |
Điện áp vào | 160 - 286V |
Điện áp ra | 230V |
Tần số nguồn vào | 50/60 Hz +/- 3 Hz (auto sensing) |
Cổng giao tiếp | Interface Port(s) RJ-45 Serial , SmartSlot , USB. |
Mô tả khác | Control panel Multi-function LCD status and control consol. Alarm when on battery : distinctive low battery alarm : configurable delays. Emergency Power Off (EPO): Optional |
Kích thước | 86 x 432 x 457 mm |
Trọng lượng | 28.64 kg |
Chi tiết sản phẩm
Output
-
Output power capacity
1.0 KWatts / 1.5 kVA -
Max Configurable Power (Watts)
1.0 KWatts / 1.5 kVA -
Nominal Output Voltage
230V -
Output Voltage Note
Configurable for 220 : 230 or 240 nominal output voltage -
Output Voltage Distortion
Less than 5% at full load -
Output Frequency (sync to mains)
47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal -
Other Output Voltages
220, 240 -
Topology
Line Interactive -
Waveform type
Sine wave -

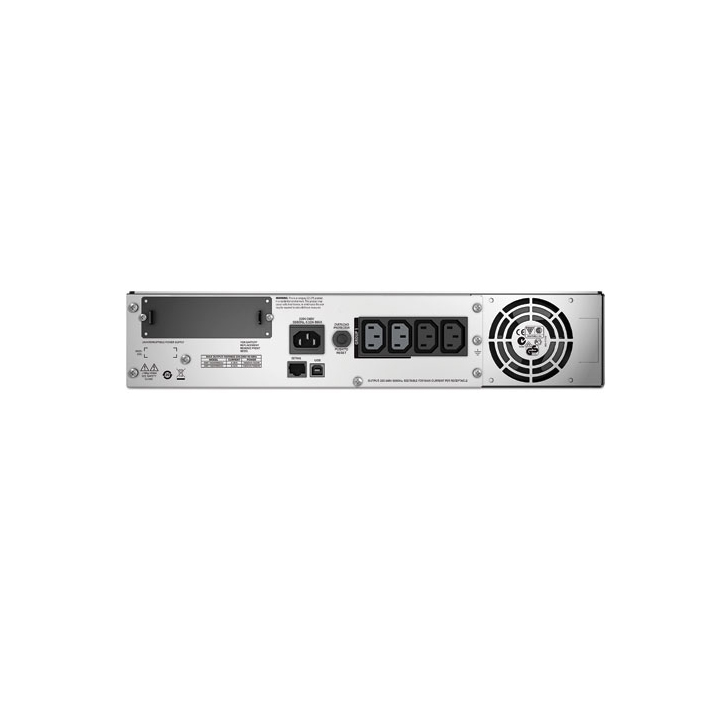

Output Connections
(4) IEC 320 C13 (Battery Backup)
(2) IEC Jumpers (Battery Backup)
-
Transfer Time
2ms typical
Input
-
Nominal Input Voltage
230V -
Input frequency
50/60 Hz +/- 3 Hz (auto sensing) -
Input Connections
IEC-320 C14 -
Input voltage range for main operations
160 - 286V -
Input voltage adjustable range for mains operation
151 - 302V -
Other Input Voltages
220, 240
Batteries & Runtime
-
Battery type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof -
Typical recharge time
3hour(s) -
Replacement Battery
APCRBC133 -
Expected Battery Life (years)
4 - 6 -
RBC Quantity
1 -
Runtime
View Runtime Graph
-
Efficiency
View Efficiency Graph
Communications & Management
-
Interface Port(s)
RJ-45 Serial , SmartSlot , USB -
Control panel
Multi-function LCD status and control console -
Audible Alarm
Alarm when on battery : distinctive low battery alarm : configurable delays -
Emergency Power Off (EPO)
Optional -
Available SmartSlot™ Interface Quantity
1
Surge Protection and Filtering
-
Surge energy rating
459Joules -
Filtering
Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Physical
-
Maximum Height
86mm , 8.6cm -
Maximum Width
432mm , 43.2cm -
Maximum Depth
457mm , 45.7cm -
Rack Height
2U -
Net Weight
28.64kg -
Shipping weight
31.91kg -
Shipping Height
251mm , 25.1cm -
Shipping Width
594mm , 59.4cm -
Shipping Depth
603mm , 60.3cm -
Color
Black -
Units per Pallet
8.0
Environmental
-
Operating Environment
0 - 40 °C -
Operating Relative Humidity
0 - 95 % -
Operating Elevation
0-3000meters -
Storage Temperature
-15 - 45 °C -
Storage Relative Humidity
0 - 95 % -
Storage Elevation
0-15000meters -
Audible noise at 1 meter from surface of unit
46.0dBA -
Online thermal dissipation
90.0BTU/hr
Conformance
-
Approvals
CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, ENERGY STAR V1.0 (EU), RCM, TUV, VDE -
Standard warranty
3 years repair or replace (excluding battery) and 2 year for battery
Sustainable Offer Status
-
RoHS
Compliant -
REACH
REACH: Contains No SVHCs -
PEP
Available in Documentation tab -
EOLI
Available in Documentation tab
