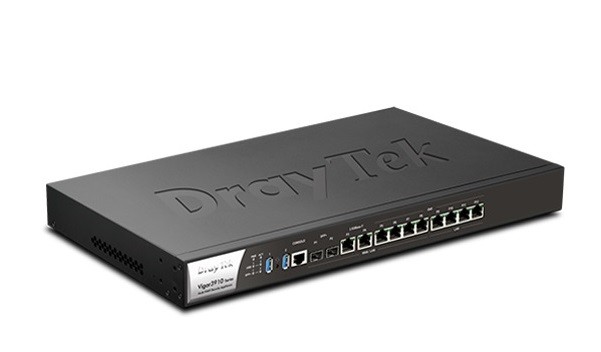

Thiết bị cân bằng tải DrayTek Vigor3910 (V3910)
Hãng sản xuất: Draytek
Bảo hành: 24 Tháng
24 Tháng
Tại sao bạn chọn Tứ Gia
- Giao hàng miễn phí lên tới 150km
- Thanh toán thuận tiện
- Sản phẩm 100% chính hãng
- Bảo hành tại nơi sử dụng
- Giá cạnh tranh nhất thị trường
- Đổi mới 30 ngày đầu nếu có lỗi của nhà sản xuất
Thông số kỹ thuật
10G High-Performance Load-Balancing VPN Concentrator - Qual Core CPU - Router hiệu năng cao dành cho doanh nghiệp, hotel, resort..
- 2 port 10 Gigabit WAN/LAN slot SFP+ (cho phép chuyển đổi WAN/LAN linh hoạt).
- 2 port 2.5 Gigabit WAN/LAN, RJ45 (cho phép chuyển đổi WAN/LAN linh hoạt).
- 4 port Gigabit LAN/WAN, RJ45 (P5-P8).
- 4 cổng Gigabit LAN ( Ethernet 10/100/1000Mbps), RJ-45 (P9-P12).
- 2 cổng USB, 2 x 3.0 cho phép kết nối USB 3G/4G, USB...- 1 cổng console, RJ45.
- Multi-WAN Load Balancing and Failover, hỗ trợ đường truyền đa dịch vụ (IPTV, Internet, VoIP...).
- NAT Session: 150.000, NAT Throughtput: 8.5Gb/s với khả năng chịu tải lên đến 500+ user, hỗ trợ nhiều dịch vụ cao cấp: Leased line, L2VPN, L3VPN, MetroNET…
- Hỗ trợ chia 50 lớp mạng khác nhau (801.2q VLAN Tag), DMZ LAN, IP routed LAN.
- VPN 500 kênh (OpenVPN, IPSec(IKEv1, IKEv2, XAuth), 200 kênh VPN SSL....), VPN Trunking (Load balancing/Backup), VPN qua 3G/4G (Dial-out).
- Tính năng Web Portal: Hiện trang quảng cáo khi khách hàng kết nối internet
- Kiểm soát và quản lý băng thông tối ưu đường truyền Internet, chế độ Hight-Availability.
- Firewall mạnh mẽ, linh hoạt (IP/MAC Address, Port Service,URL/Web Content Filter...).
- Quản lý tập trung với Cloud VigorACS 2, quản lý tập trung Access Point APM, quản lý tập trung Switch SWM.
- Chịu tải 500 User
THÔNG SỐ KỸ THUẬT
PHẦN CỨNG | |
Port | WAN |
1x 10G/1G SFP+ Fiber Slot (P1) | |
1x 2.5G/1G/100M/10M Ethernet, RJ-45 (P3) | |
4x 1G/100M/10M Ethernet, RJ-45 (P5-P8) | |
LAN | |
1x 10G/1G SFP+ Fiber Slot (P2) | |
1x 2.5G/1G/100M/10M Ethernet, RJ-45 (P4) | |
4x 1G/100M/10M Ethernet, RJ-45 (P9-P12) | |
USB | |
2x USB 3.0 | |
Console | |
1 cổng console RJ45 | |
Nguồn | AC 100~240V, 50/60Hz |
Power Consumption 35 watt | |
Nút điều khiển | 1 Button Factory |
Kích thước | 443 mm x 285 mm x 45 mm |
Trọng lượng | 3.23 kg |
PHẦN MỀM | |
WAN | Multi-WAN (10Gb/2.5Gb/1Gb) |
Outbound Policy-based Load-balance | |
WAN Connection Failover | |
WAN Protocol | |
DHCP Client | |
Static IP | |
PPPoE | |
PPTP | |
L2TP | |
Network | Packet Forwarding Acceleration |
DHCP client/relay/server | |
DHCP Option: 1,3,6,51,53,54,58,59,60,61,66,125 | |
IGMP v2/v3 | |
LAN DNS /DNS Forwarding | |
Dynamic DNS | |
NTP client | |
Call scheduling | |
RADIUS /TACACS+ Client | |
RADIUS Server | |
Active Directory /LDAP compatible (client) | |
DNS cache/proxy | |
UPnP 50 sessions | |
Wake on LAN | |
Bonjour service | |
Routing protocol : | |
Static routing (IPv4 static route 40 entries, and IPv6 static route 40 entries) | |
RIP v1/v2 | |
Management | Web-Based User Interface (HTTP/HTTPS) |
Quick Start Wizard | |
CLI (Command Line Interface, Telnet/SSH) | |
Administration Access Control | |
Configuration Backup/Restore | |
Built-in Diagnostic Function | |
Firmware Upgrade via TFTP/FTP/HTTP/TR-069 | |
Logging via Syslog | |
SNMP Management with MIB-II | |
Management Session Time Out | |
2-level management (Admin/User Mode) | |
TR-069 Management | |
TR-104 Management | |
Chất lượng dịch vụ | |
QoS : | |
Guarantee Bandwidth for VoIP | |
Class-based Bandwidth Guarantee by User-defined Traffic Categories | |
DiffServ Code Point Classifying | |
4-level Priority for Each Direction (Inbound/Outbound) | |
Bandwidth Borrowed | |
Bandwidth / Session Limitation | |
Layer-2 (802.1p) and Layer-3 (TOS / DSCP) QoS Mapping * | |
VPN | VPN |
Up to 500 VPN Tunnels (including 200 SSL VPN tunnels) | |
Protocol: PPTP, IPSec, L2TP, L2TP over IPSec | |
Encryption: MPPE and Hardware-based AES/DES/3DES | |
Authentication: MD5, SHA-1 | |
IKE Authentication: Pre-shared Key and Digital Signature (X.509) | |
LAN-to-LAN, Teleworker-to-LAN (remote user dial-in) | |
DHCP over IPSec | |
IPSec NAT-Traversal (NAT-T) | |
Dead Peer Detection (DPD) | |
VPN Pass-Through | |
mOTP | |
Tính năng nâng cao | Firewall |
DMZ Host, Port-redirection(Up to 40 entries) and Open Port(Up to 40 entries) | |
Object-based Firewall | |
MAC Address Filter | |
SPI (Stateful Packet Inspection) (Flow Track) | |
DoS Prevention | |
IP Address Anti-Spoofing | |
E-mail alert and logging via Syslog | |
Bind IP to MAC Address | |
Time Schedule Control | |
Central Device Management | |
AP Management : 30 nodes (independent with External Device feature)* | |
Central VPN Management : 8 nodes | |
Switch Management : 10 nodes * | |
Content Security Management (CSM) | |
APP Enforcement | |
Support APPE Signature Upgrade by license. | |
URL Content Filter | |
Access Control : URL Keyword Blocking (White/Black List) | |
Web Feature : Java Applet, Cookies, Active X, Compressed,Executable,Multimedia File Blocking | |
Web Content Filter (support Cyren and BPjM ) | |
USB | 3.5G (HSDPA) and 4G (LTE) as WAN5 by using USB dongle |
(USB1: disk/sensor/printer,USB2: 3G/LTEdongle/disk/sensor/printer) | |
File System : | |
Support FAT32 / FAT16 file system | |
Support FTP function for File Sharing |
